Alko wheel bearing kit, Older Ifor Williams, 18590, Roller Taper Bearing Al-KO

Premium Quality Bearings & Seal

Bearing Dimensions

Inside Diameter (d): 41.28mm / 1.625 Inch
Outside Diameter (D): 73.03mm / 2.875 Inch
Bearing Width (T): 16.67mm / 0.656 Inch
Cone Width (B): 17.46mm / 0.687 Inch
Cup Width (C): 12.70mm / 0.500 Inch

Bearing Features

• The bearings are manufactured from high quality chromium bearing steel (100cr6)
• Cup and Cone separable bearings
• High quality tapered roller bearing design with high axial and radial load bearing capacity.

Alternate or Manufacturer part numbers

Ifor Williams
P0001 - Bearing Cup. Used on all braked trailers up to September 1992. Requires P0002 bearing cone and 2 per wheel are required.
P0002- Bearing Cone. Used on all braked trailers up to September 1992. Requires P0001 bearing cup and 2 per wheel are required.
P0004 - Oil seal 55mm ID x 75mm OD x 10mm Wide

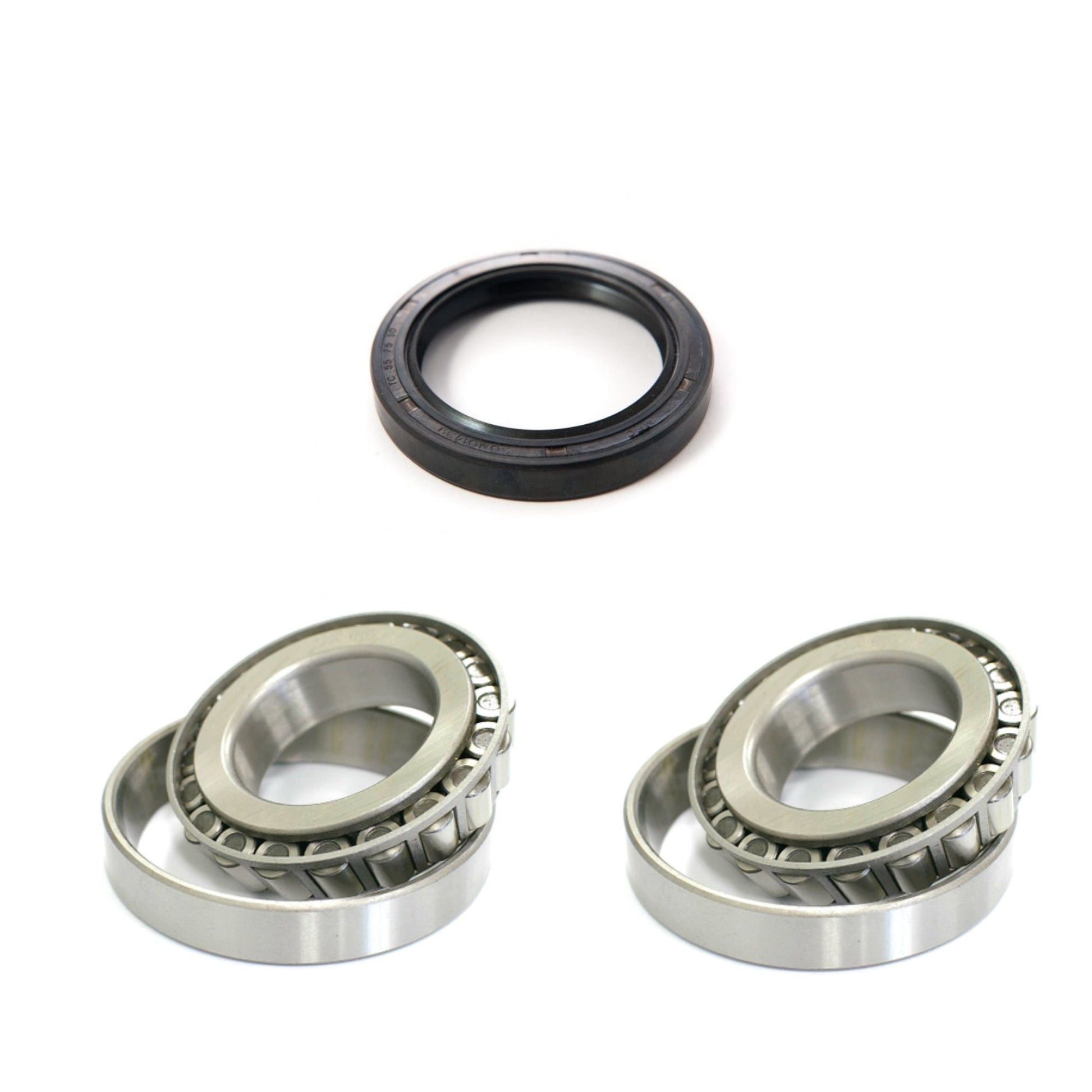

This kit comes with :

2 x P0001 bearings
2 x P0002 bearings
1 x P0004 oil seal

This kit contains the parts you need to enable you to replace the bearings on one wheel on a Ifor Williams trailer which was manufactured before September 1992

Please note that the items in the photograph are for reference purposes only. The parts supplied in this kit are not original Ifor Williams parts but are replacement aftermarket parts.
