4 x Ifor Williams NTN Wheel Bearings 76MM with Stake Nuts, Hub Caps and Circlips

Premium Quality NTN Bearings

Bearing Dimensions

42mm Inside Diameter
76mm Outside Diameter
39mm Wide

Bearing Features

• Unitized bearing for hubs with a 76mm bore for Ifor Williams hubs fitted since 1996.
• The bearings are manufactured from high quality chromium bearing steel (100cr6)
• Sealed for life bearing, no maintenance required and the bearing should not be opened or tampered with
• High quality double row tapered roller bearing design with high axial and radial load bearing capacity.

Alternate or Manufacturer part numbers

Ifor Williams
P00002 - This is the Ifor Williams part number for the bearings (Dimensions 42mm x 76mm x 39mm)
F1951 - This is the Ifor Williams part number for the circlip (76MM Internal circlip)
F1014Z - This the Ifor Williams part number for the flanged stake nuts with M30 thread
P1258 - This is the Ifor Williams part number for the hub caps. For trailers with bolt on knott brakes and 76mm bearings 1996 onwards. Damaged or missing hub caps should be replaced as soon as possible to avoid potential contamination of the unitised bearing

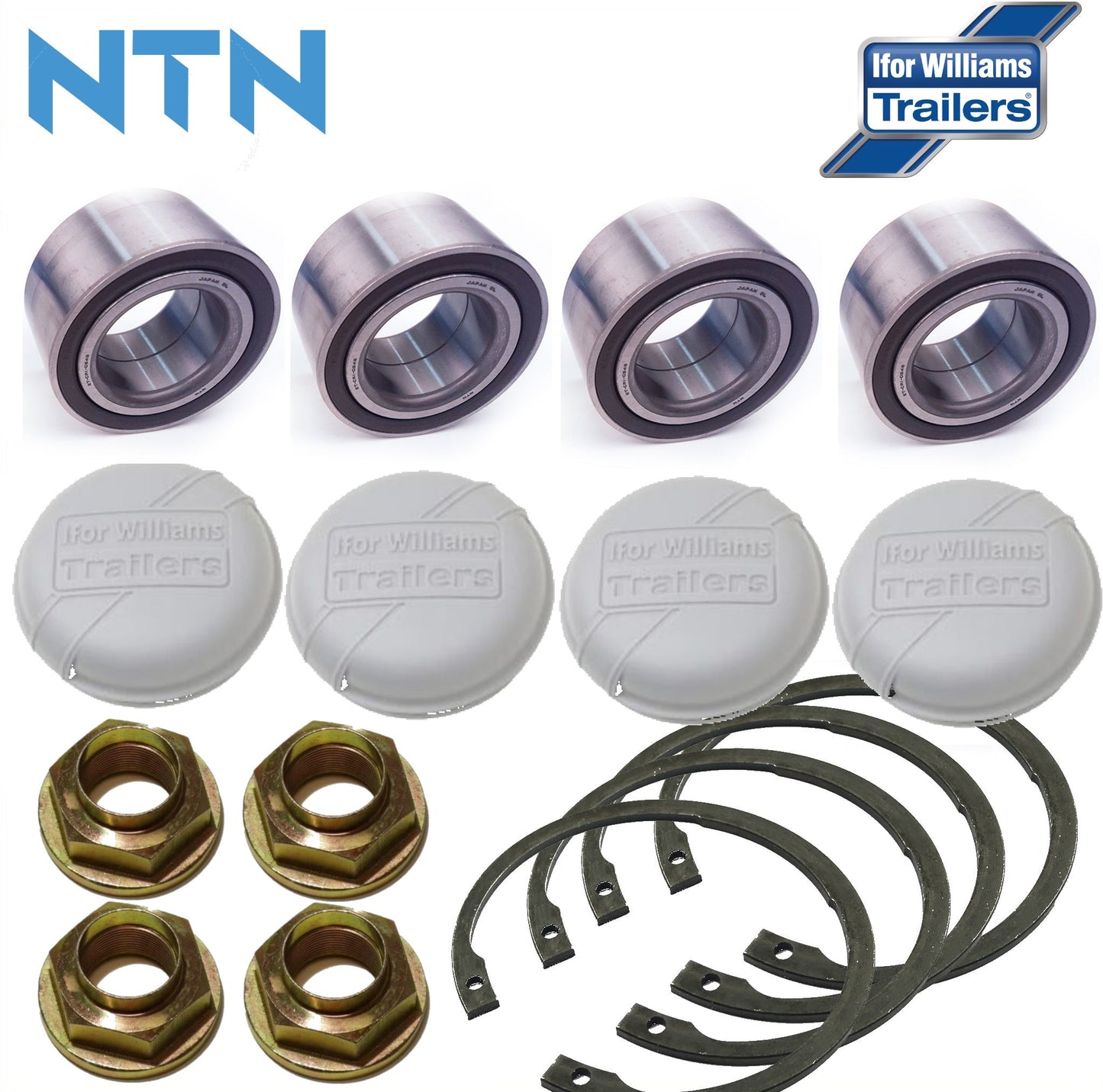

This kit comes with :

4 x P00002 bearings
4 x F1951 circlips
4 x F1014Z stake nuts
4 x P1258 hub caps

This kit contains the parts you need to enable you to replace all of the wheel bearings on a Ifor Williams trailer.

Important Information
Ifor Williams recommend that the unitised wheel bearings do not require adjustment, however if the hubs are removed it is recommended that a new axle end nut is fitted and tightened to a torque of 350Nm/260lb ft. Over-tightening or under-tightening will cause the bearing to fail.
