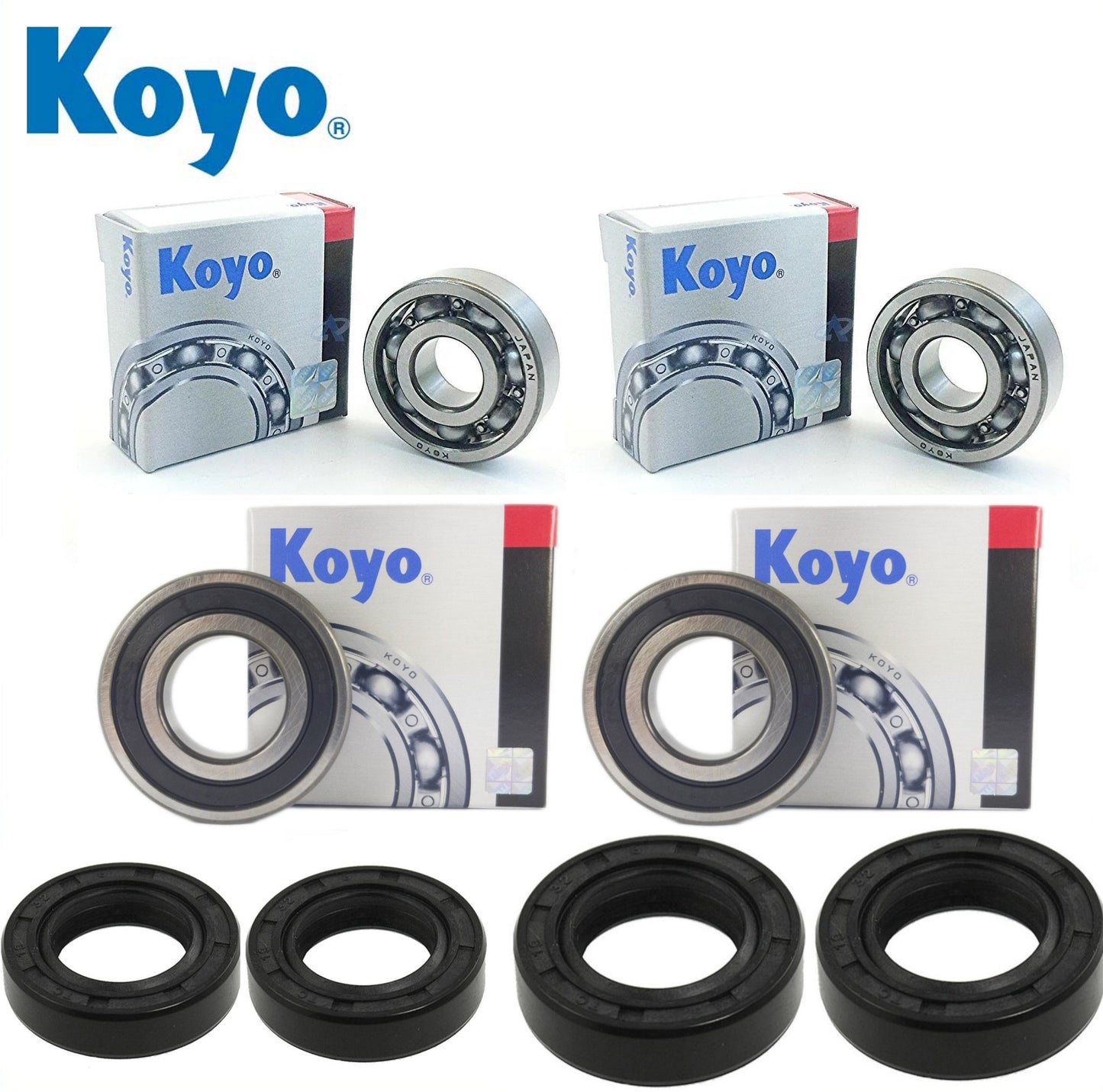

Yamaha YFM200 Quad Bike Front Wheel Bearing Kit Year 1984 for model 52H 999

2 x bearings manufactured by Koyo who are one of the largest premium bearing manufacturers in the world. The Yamaha part number for the bearings is 93306-20310-00 and the bearing dimensions are 17mm inside diameter x 40mm outside diameter x 12mm wide. They come with rubber bearing seals integrated into the bearings to help keep the grease in the bearings and dirt and contaminents out.

2 x bearings also manufactured by Koyo. The Yamaha part number for this bearing is 93306-00315-00 and the bearing dimensions are 17mm inside diameter x 35mm outside diameter x 10mm width.

2 x Oil Seals manufactured from NBR material and with a secondary wiper lip which acts as an additional barrier to prevent dirt and contaminants from reaching the bearing. The Yamaha part number for the oil seals is 93102-23252-00 and the dimensions of the seals are 23mm inside diameter x 40mm outside diameter x 7mm wide.

2 x Oil Seals manufactured from NBR material and with a secondary wiper lip which acts as an additional barrier to prevent dirt and contaminants from reaching the bearing. The Yamaha part number for the oil seals is 93105-49023-00 and the dimensions of the seals are 49mm inside diameter x 62mm outside diameter x 6mm wide.
